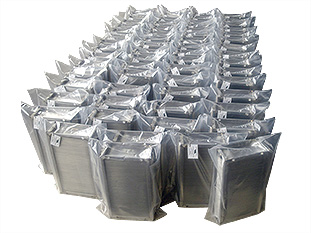

Wire string demister

ОКP 36 8953 0004, ОКP 36 8953, TU 26-02-1109-89Wire string demister

Demisters are intended for oil degassing and accompanying gas purification processes in product collection and preparation units in oil fields, as well as for other processes of air-gas separation from liquids, treatment of combustion gases and gas emissions.

Two types of demisters are produced: string and mesh type, they are made of various materials and intended for extraction of liquid and acid drops from air, gas and steam (smoke) flows.

Moreover, mist eliminators may be used as lowering units in which the trapped liquid is not accumulated but is immediately discharged into the lower tank.

Mist eliminators are used for additional separation of gas flow coming out of the main oil-gas separator, and ensure the final gas separation from liquid drops which may come up and come out with the gas flow from the main unit in the result of foaming or temporary abnormalities.

Wire string demister

The mist eliminators use separation units: string demisters, knitted wire mesh packing. Lowering mist eliminators ensure liquid drops carryover not more than 30 mg/m3 of gas.

Due to specific construction and materials, the lowering mist eliminators may be used for gases containing aggressive media: carbon dioxide and hydrogen sulfide.




Are used in:

- Gas-and-oil producing, gas-and-oil treatment, petrochemical, chemical industry
- Metallurgic, power industry

Specifications:

Options KS 430 KSU 430
Efficiency of separation g/nm3, no more 0,1 0,1
Hydraulic resistance MPа, no more 1,0*10-3 1,0*10-3
The number of layers of strings along the gas (pieces) от 28 до 32 от 28 до 32
Material execution wire 12Х18Н10Т 12Х18Н10Т и др.
Material of execution of corps 08Х13 12Х18Н10Т
The thickness of the wire 0,45; 0,5; 0,55 0,45; 0,5; 0,55
Weight kg, no more 10 10
